2024 Ford Transit-150 Cargo Dimensions & Towing Capacity

2024 Ford Transit-150 Cargo Van

Shop Ford Transit-150 Cargo</a >

In this in-depth guide, we’re diving into details of the 2024 Ford Transit-150 Cargo Van. This vehicle offers premium comfort with the toughness and capability that the Ford Transit is known for. Learn about its dimensions, specs, and more below, and then visit Bell Ford to explore it even further.

Ford Transit Cargo Van Dimensions

The 2024 Ford Transit-150 Cargo Van has multiple body lengths and roof height configurations. Specifically, this vehicle offers models with low and medium roof heights and regular or long body lengths. Here are the dimensions for each configuration.

Ford Transit Cargo Van Exterior Dimensions

Exterior Dimensions

Regular Length With Low Roof

  • Length: 219.9 inches
  • Width (with mirrors): 97.4 inches
  • Height: 82.2 inches
  • Wheelbase: 130 inches

Long Length With Low Roof

  • Length: 237.6 inches
  • Width (with mirrors): 97.4 inches
  • Height: 82.9 inches
  • Wheelbase: 148 inches

Long Length With Medium Roof

  • Length: 235.5 inches
  • Width (with mirrors): 97.4 inches
  • Height: 101.3 inches
  • Wheelbase: 148 inches
Ford Transit Cargo Van Interior Dimensions

Interior Dimensions

Every configuration of the Ford Transit-150 Cargo Van can provide seating for up to three people. The two standard seats are as you’d expect them to be: up front, with one for the driver and one for the passenger. Adding the third-seat option leaves the driver’s seat as-is but creates a semi-bench passenger-side seat for two people.

If you’d prefer a Transit van that has more flexible seating and can fit up to 15 people, consider the Transit-350 Passenger Van.

Returning to the Transit-150 Cargo Van model, the leg, hip, and shoulder room dimensions are the same for all body configurations:

  • Leg Room: 41.3 inches
  • Hip Room 60.7 inches
  • Shoulder Room 67.9 inches

The differences lie in the available headroom for each roof height of the Transit-150 Cargo Van options.

  • Low-Roof Headroom: 40.8 inches
  • Medium-Roof Headroom: 52.0 inches

Cargo Area Dimensions

Regular Length

  • Cargo Length at Floor: 126.0 inches
  • Cargo Width Between Wheelhouse: 54.8 inches

Long Length

  • Cargo Length at Floor: 143.7 inches
  • Cargo Width Between Wheelhouse: 54.8 inches

Low Roof

  • Max Cargo Height: 56.9 inches

Medium Roof

  • Max Cargo Height: 72.0 inches

Ford Transit-150 Cargo Van Specs

The 2024 Ford Transit-150 Cargo specs include two different engine options: a standard 3.5-liter V-6 that produces 275 horsepower and 260 pound-feet of torque and an available 3.5-liter EcoBoost V-6 engine that delivers 310 horsepower and 400 pound-feet of torque.

The 2024 Ford Transit-150 Cargo Van has standard RWD and can be equipped with AWD as an option.

Let’s take a look at the maximum available towing capacity for each body type and engine for the 2024 Ford Transit-150 Cargo van.

Ford Transit-150 Towing Capacity

3.5-Liter PFDI V-6 Engine

Please note that these maximum towing capacities require the available 4.10 rear axle ratio.

The standard 3.73 rear axle ratio provides the Regular Length model with a capacity of 5,300 pounds1 with RWD or 5,100 pounds1 with AWD. The Long Length models with a 3.73 rear axle have a towing capacity of 5,100 pounds1 and 4,900 pounds,1 respectively.

3.5-Liter EcoBoost V-6

The EcoBoost engine only pairs with the 3.73 rear axle ratio.

The maximum payload capacity varies by configuration, but all Ford Transit-150 versions have a payload capacity rating within the 3,000-pound range.2

On the low end, the Ford Transit-150 Cargo Van has a maximum payload capacity of 3,148 pounds2 when equipped with a medium roof, long wheelbase, 3.5-liter EcoBoost V-6, and AWD. The highest available payload capacity is a maximum rating of 3,668 pounds2 for the low-roof, regular wheelbase model with a 3.5-liter V-6 engine and RWD.

2024 Ford Transit-150 Cargo Interior

2024 Ford Transit-150 Cargo Interior

The Ford Transit-150 Cargo Van interior perfectly combines spacious comfort and cargo utility. Passengers and cargo get plenty of space in every configuration. The headroom varies depending on roof type, with even the low-roof option offering 40.8 inches of headroom for the front seats and 56.9 inches for those working in the cargo area (while the vehicle is stationary, of course).

The seating in the Ford Transit-150 Cargo Van comprises two front bucket seats, but as mentioned, you can add three-passenger seating. The seats come standard with Dark Palazzo Gray Vinyl and manual adjustments. Optional upgrades include Dark Palazzo Gray Cloth or Ebony cloth and 10-way power heated seats. For passenger safety, the Ford Transit Cargo Van comes standard with front and side airbags and side-curtain airbags that cover the front seats.

This van comes standard with an AM/FM stereo with a 4-inch display screen, and you can choose to upgrade to the SYNC 4 system with SiriusXM® with 360L, HD Radio™, Connected Navigation, and a 12-inch display. This is only a small glimpse of the array of Ford Transit-150 Cargo features</a > to explore.

The cockpit of the van offers an available large center console and conveniently placed controls for climate and media. The dashboard has integrated storage and USB-charging ports, and the center console offers space for phones and office supplies. Additionally, you can get an optional small center console with an integrated shifter and a cup holder when you opt for three-passenger seating.

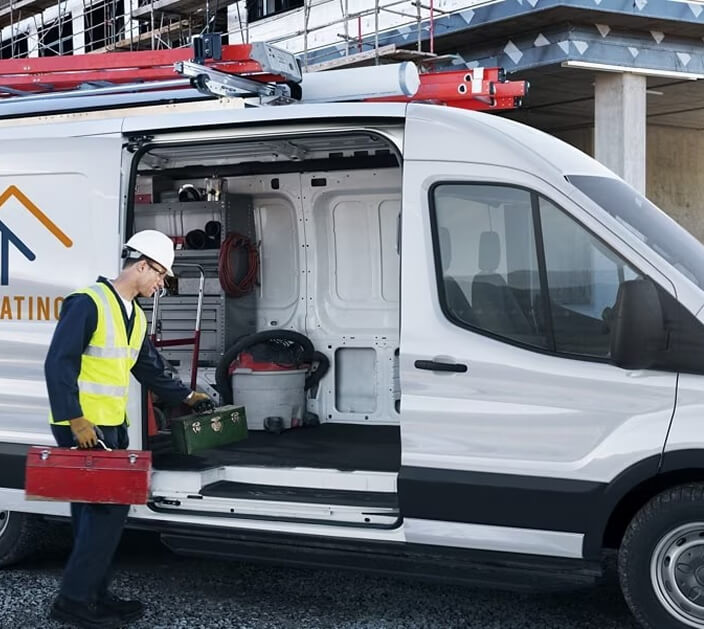

The van’s cargo area allows plenty of space for transporting large and small items and gear, and there is also plenty of room to add racks and bins for the convenient storage and transportation of tools, supplies, and equipment. The rear cargo doors are 50/50 split and come standard with a 180-degree opening, although you can opt for the available 253-degree opening on the long-wheelbase vans for more efficient access.

Shop 2024 Ford Transit-150 Cargo</a > Van models to find the perfect van for your needs.

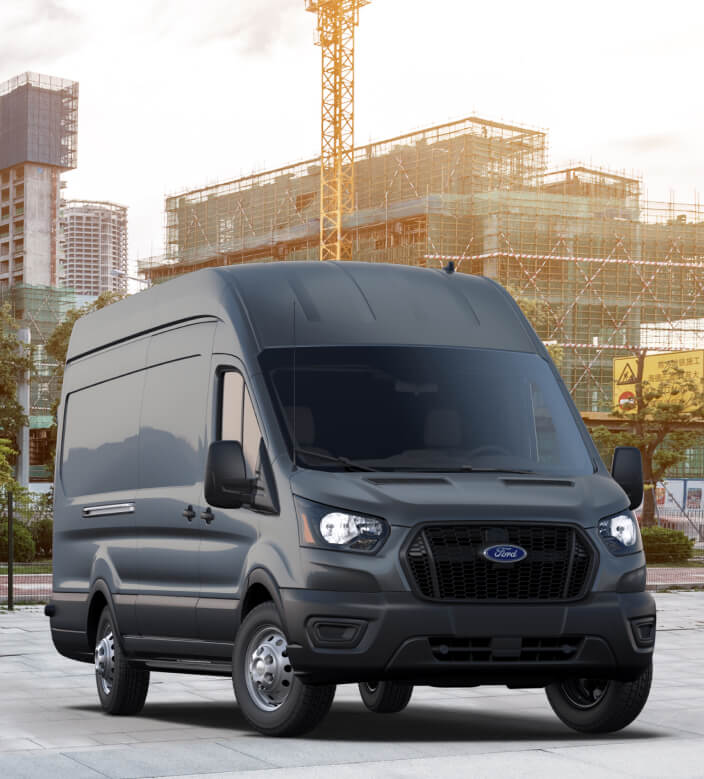

2024 Ford Transit-150 Cargo Van Exterior

2024 Ford Transit-150 Cargo Van Exterior

The exterior of the Ford Transit-150 Cargo Van creates a practical presence that means business. This vehicle arrives with a variety of color options, including:

  • Oxford White
  • Agate Black Metallic
  • Ingot Silver
  • Blue Metallic
  • Race Red
  • Carbonized Gray Metallic
  • Avalanche Gray Metallic
  • Abyss Gray Metallic

The Transit-150 complements any color choice with standard Carbon Black body side moldings and a honeycomb mesh grille with a Carbon Black surround.

Packages Available for the Ford Transit-150 Cargo Van

There are a variety of available packages to help you enhance the comfort and performance of your van, including the following:

More packages are available for you to discover; contact our Ford Transit dealership to learn about your options.

Ford Transit-150 Cargo Van Safety Features

The Ford Transit-150 Cargo Van offers many standard and available safety features for your team and supplies. Standard safety technologies include a Tire Pressure Monitoring System and an SOS Post-Crash Alert System. Optional safety and driver-assistance features include:

Explore our new Ford inventory</a > or stop by for a test drive today to fully experience the Ford Transit-150 Cargo Van to see if it meets the capability and functionality you need.

Frequently Asked Questions

How many seats does a Ford Transit-150 Cargo Van have?

The Ford Transit Cargo van offers up to three seats. The front of the van offers two bucket seats for the driver and a passenger. Selecting a three-seat configuration adds an attached seat to the standard passenger seat. The Ford Transit Cargo Van has extended side curtain airbags for front occupants and both cloth and vinyl seat upholstery options.

What is the towing capacity for the Ford Transit-150 Cargo Van?

The maximum towing capacity of the Ford Transit-150 Cargo Van is 6,900 pounds1 with the available 3.5-liter EcoBoost V-6 engine and an RWD configuration. The total towing and payload capacity of the Ford Transit-150 Cargo Van varies depending on the engine type, drive train, and wheelbase length. Available towing packages include a heavy-duty towing package and a tow/haul mode.

What are the dimensions of the 2024 Ford Transit-150 Cargo Van?

The dimensions of the 2024 Ford Transit-150 Cargo Van vary. With the regular 130-inch wheelbase, this van is 219.9 inches long. With the long 148-inch wheelbase, the van is 237.6 inches long. The low-roof configuration has a total height of 82.2 inches, and the medium-roof option has a total height of 101.3 inches. The van is 97.4 inches wide.


1Max towing varies based on cargo, vehicle configuration, accessories and number of passengers.</small >

2Payload capability will be reduced based on trim series, option content and passengers. See label on door jamb for carrying capacity of a specific vehicle.</small >
